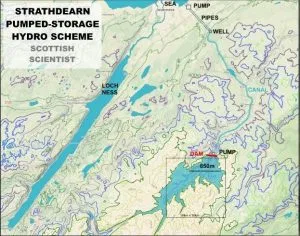

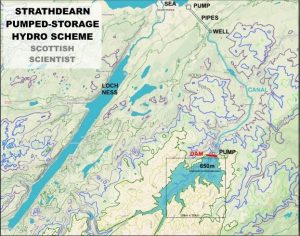

The map shows how and where the biggest-ever pumped-storage hydro-scheme could be built – Strathdearn in the Scottish Highlands.
Energy storage capacity
The scheme requires a massive dam about 300 metres high and 2,000 metres long to impound about 4.4 billion metres-cubed of water in the upper glen of the River Findhorn. The surface elevation of the reservoir so impounded would be as much as 650 metres when full and the surface area would be as much as 40 square-kilometres.
The maximum potential energy which could be stored by such a scheme is colossal – about 6800 Gigawatt-hours – or 283 Gigawatt-days – enough capacity to balance and back-up the intermittent renewable energy generators such as wind and solar power now in use for the whole of Europe!
Transmission losses
Most of Europe is within 3,000 km of Strathdearn meaning that one-way transmission losses to or from anywhere in Europe could be as low as 10.5% using existing high-voltage (800 kV), direct current (HVDC) electric power transmission system.
In theory, transmission power losses are inversely proportional to the voltage-squared so it is possible that if and when even higher voltage than 800 kV transmission technology were to be developed, transmission losses could be reduced still further.
